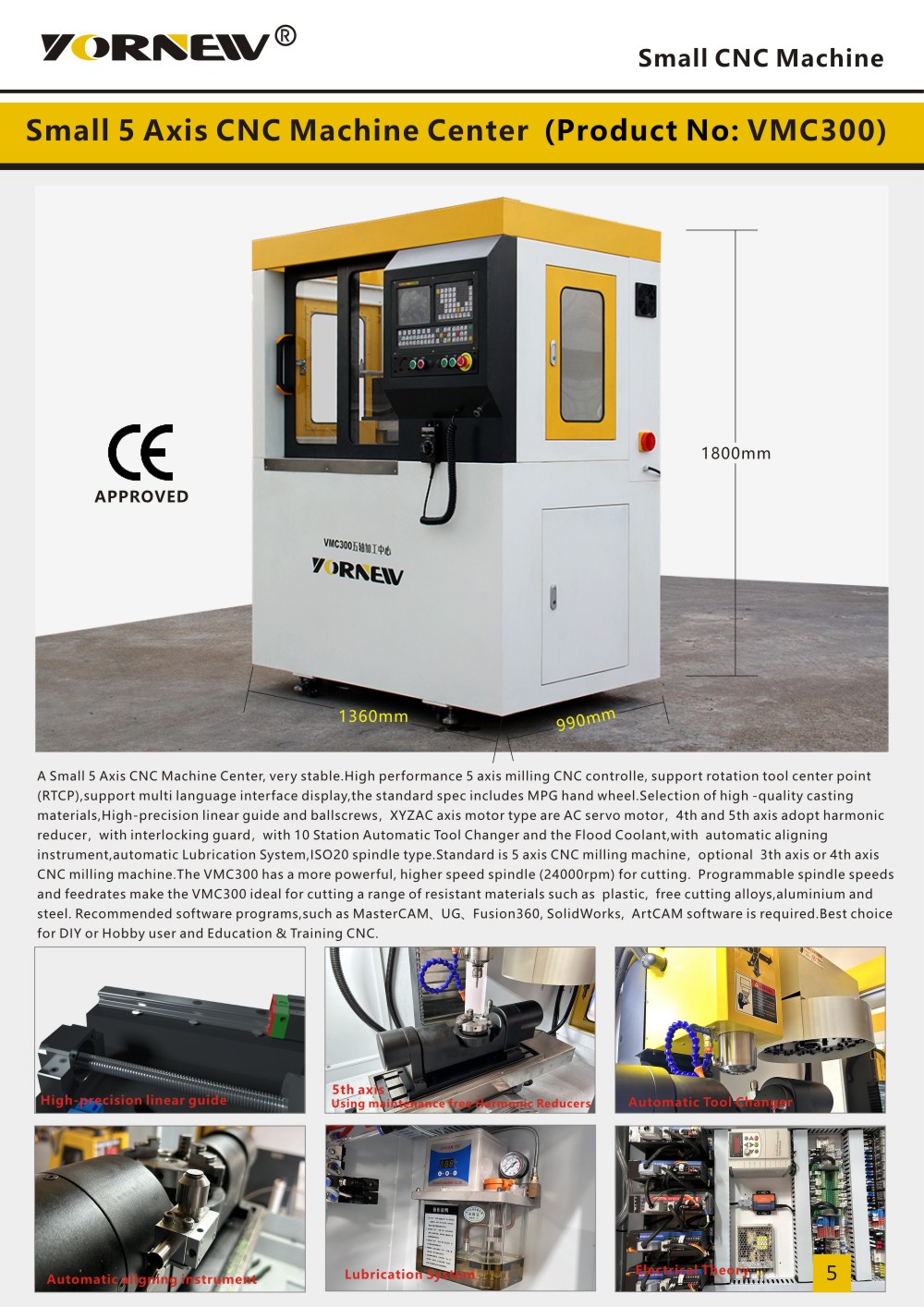

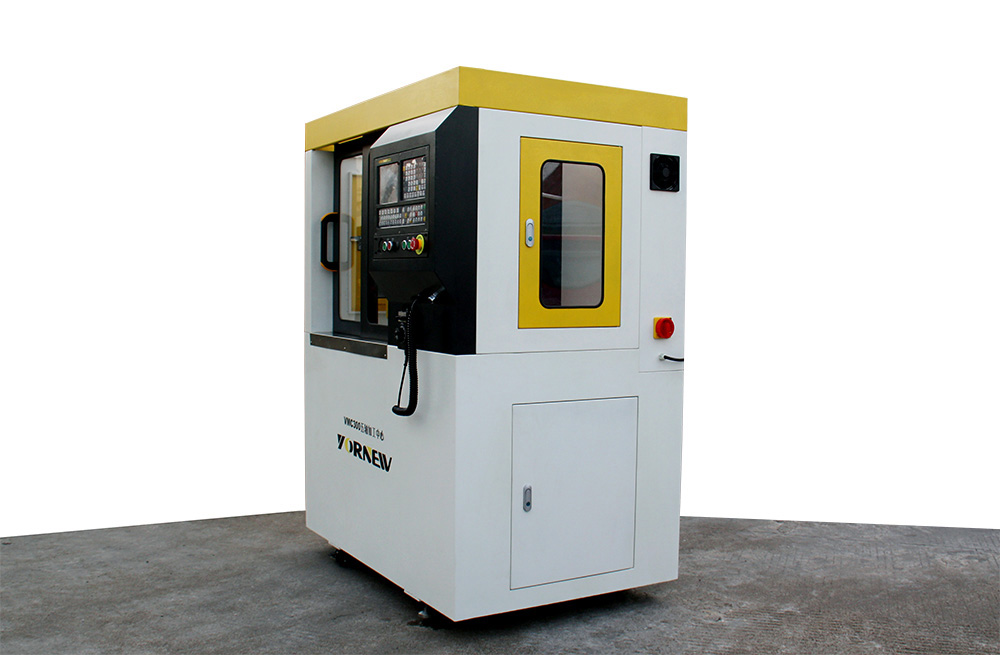

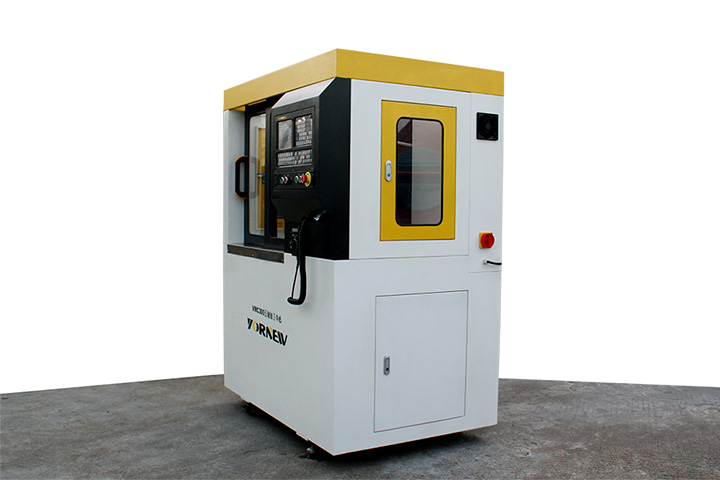

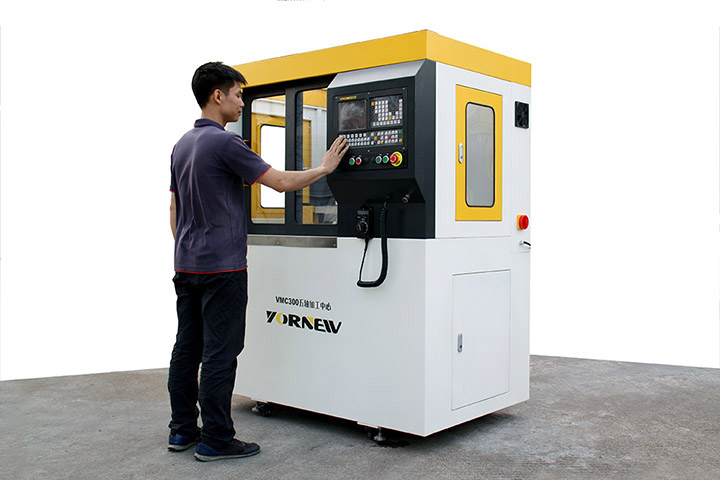

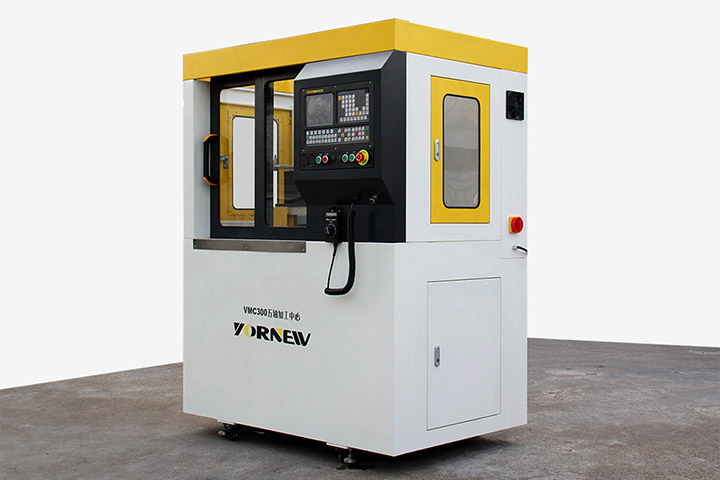

(1).VMC300 small 5 axis CNC machine center standard configuration use 220/110VAC? single phase voltage,choose Siemens system or Fanuc system with 380VAC?voltage.With interlocking protective devices, use high-accuracy linear guides and ball screws, machine tool body cast with high-quality cast iron materials; Materials that can be processed: steel, iron, copper, aluminum alloy, etc.
(2).Standard configured with YORNEW five-axis linked CNC system, supporting RTCP （rotation tool center point) function, can process small five-axis parts and various complex three-axis parts. Optional other system,such as Fanuc series OI-MF plus controller,SINUMERIK 808D or 828D.
(3).With high-speed spindle that operates at 100-24000rpm, spindle motor power of 2.2 kw,spindle taper is ISO20. The XYZAC axis motors use servo motors ,with a workpiece cooling system liquid circulation system and an automatic tool presette;
(4).Configure automatic tool change system (10 tools), using air pressure of 0.6 Mpa, supporting standard G code and CAM software (MasterCAM, UG, Fusion360, etc.);

Industrial mill CNC system

Industrial-grade five-axis linked CNC system,supporting RTCP（rotation tool center point) function;8.4-inch color LCD screen,support multi language interface display,ARM 9 CPU FPGA,support B macro function,PLC function.

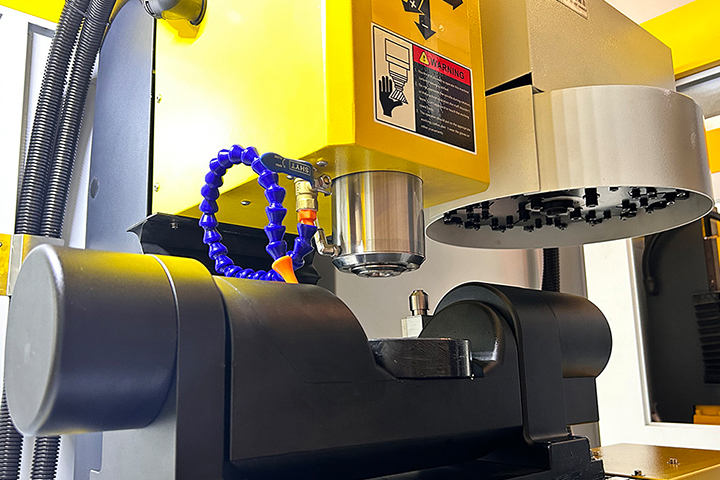

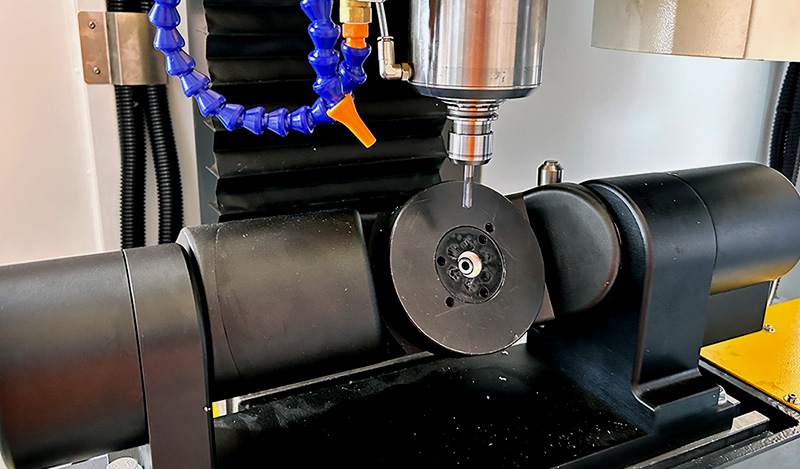

5th Axis

5th axis device use a harmonic gear reducer, it has high precision, zero backlash, and strong self-locking capability. The AC axis uses a 200W servo motor,with aviation plug, plug-and-play,making it flexible and convenient. Remarks：5th axis isn't necessary,you can only buy XYZ axis machine.

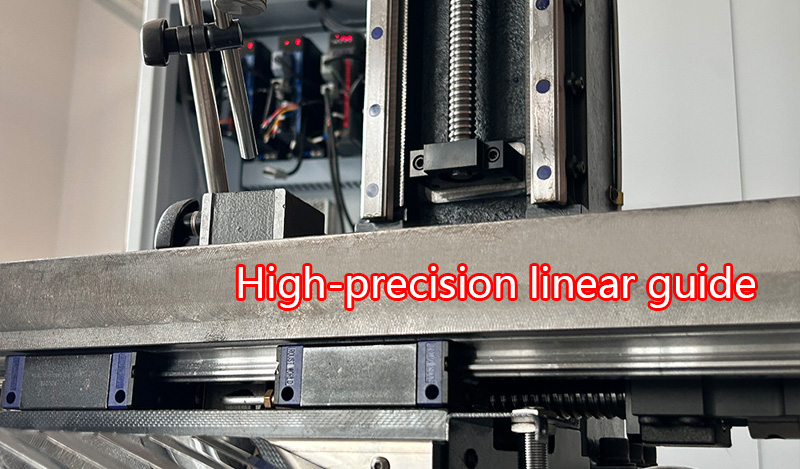

Linear guide and ballscrews

Selection high-precision linear guide and ballscrews,machine tool body by casting materials,automatic lubricSation system,protect the rail life,experience the pinnacle of precision, reliability.

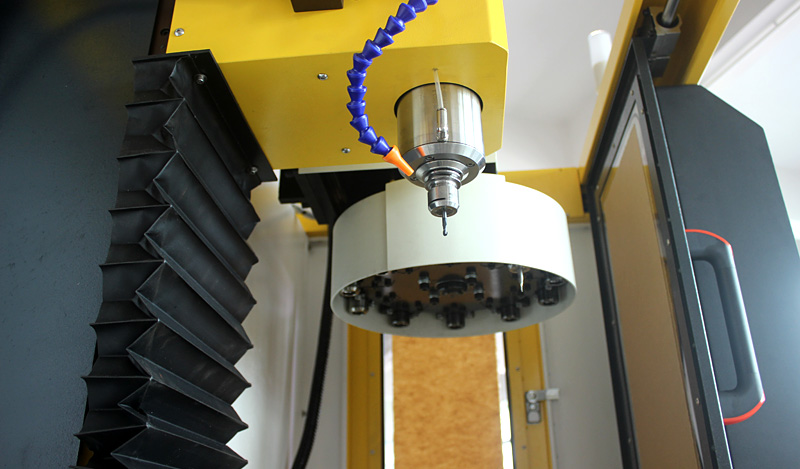

Spindle and ATC

Equipped with an ISO20 variable frequency water-cooled high-speed spindle, with a maximum speed of 24000rpm/min and spindle power of 2.2 kW, it features a 10-position automatic tool change system(ATC) ; equipped with an Z axis tool setter to improve tool setting accuracy, reduce machining errors, and save tool setting time.

Messtaster probe module

option online messtaster probe module,it can achieve automatic centering, automatic alignment, angle correction, automatic compensation for square/circular workpieces, and automatic depth compensation for concave and convex platforms.

Efficient Cooling and Filtration

Our large-capacity circulation cooling water tank, equipped with a filtration system, effectively dissipates heat and removes impurities, ensuring optimal performance and extending the lifespan of your tools and spindle. With manual and automatic control options, our system adapts to your specific needs.?

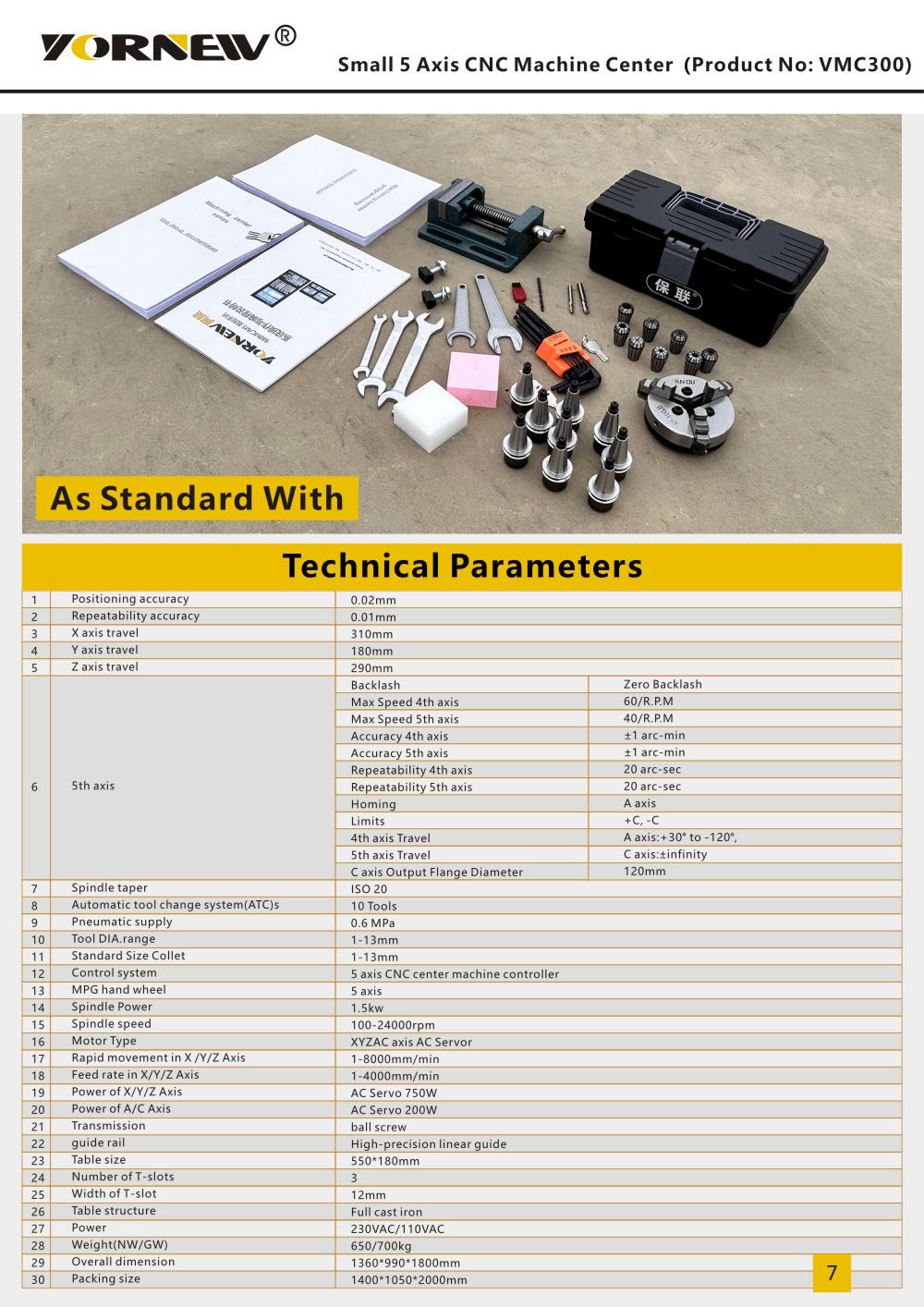

Technical parameters
Positioning accuracy	0.02mm
Repeatability accuracy	0.01mm
X axis travel	310mm
Y axis travel	180mm
Z axis travel	290mm
Options 5th axis	Backlash	Zero Backlash
	Max Speed 4th axis	30/R.P.M
	Max Speed 5th axis	30/R.P.M
	Accuracy 4th axis	±1 arc-min
	Accuracy 5th axis	±1 arc-min
	Repeatability 4th axis	20 arc-sec
	Repeatability 5th axis	20 arc-sec
	Homing	A axis
	Limits	+C, -C
	4th axis Travel	A axis:+30° to -120°,
	5th axis Travel	C axis:±infinity
	C axis Output Flange Diameter	120mm
Spindle taper	ISO 20
Automatic tool change system(ATC)	10 Tools
Pneumatic supply	0.6 MPa
Tool DIA.range	1-13mm
Standard Size Collet	1-13mm
Control system	5 axis CNC center machine controller
MPG hand wheel	5 axis
Spindle Power	2.2kw
Spindle speed	100-24000rpm
Motor Type	XYZAC axis AC Servo
Rapid movement in X /Y/Z Axis	1-8000mm/min
Feed rate in X/Y/Z Axis	1-4000mm/min
Power of X/Y/Z Axis	AC Servo 750W
Power of A/C Axis	AC Servo 200W
Transmission	ball screw
guide rail	High-precision linear guide
Table size	550*180mm
Number of T-slots	3
Width of T-slot	12mm
Table structure	Full cast iron
Power	230VAC/110VAC
Weight(NW/GW)	650/700kg
Overall dimension	13609901800mm
Packing size	140010502000mm
